Ada Studio¶
adapy is a library first. Everything on this page (reading and converting models, meshing, clash and joint checks, baking FE results) is adapy code, and the same functions are yours to call from a Python script, a Jupyter notebook or your own application.
Ada Studio is the web application built on top of it, with adapy as its engine. You can open CAD, BIM and FE models in the browser, look through them, run checks on them and walk through FE results, with no installation on the client. A server stores your files and its workers run adapy to convert, bake and check them.
Its viewer is not limited to the hosted application. Calling .show() on a model, a part or
an FE result opens the same viewer from any script: in a browser tab served by a local
viewer server, or inline when the call runs in Jupyter.
The screenshots on this page are generated, not taken by hand: each one is a user story
in scripts/docs/ui_stories.py
that drives the real application (see Regenerating the screenshots).

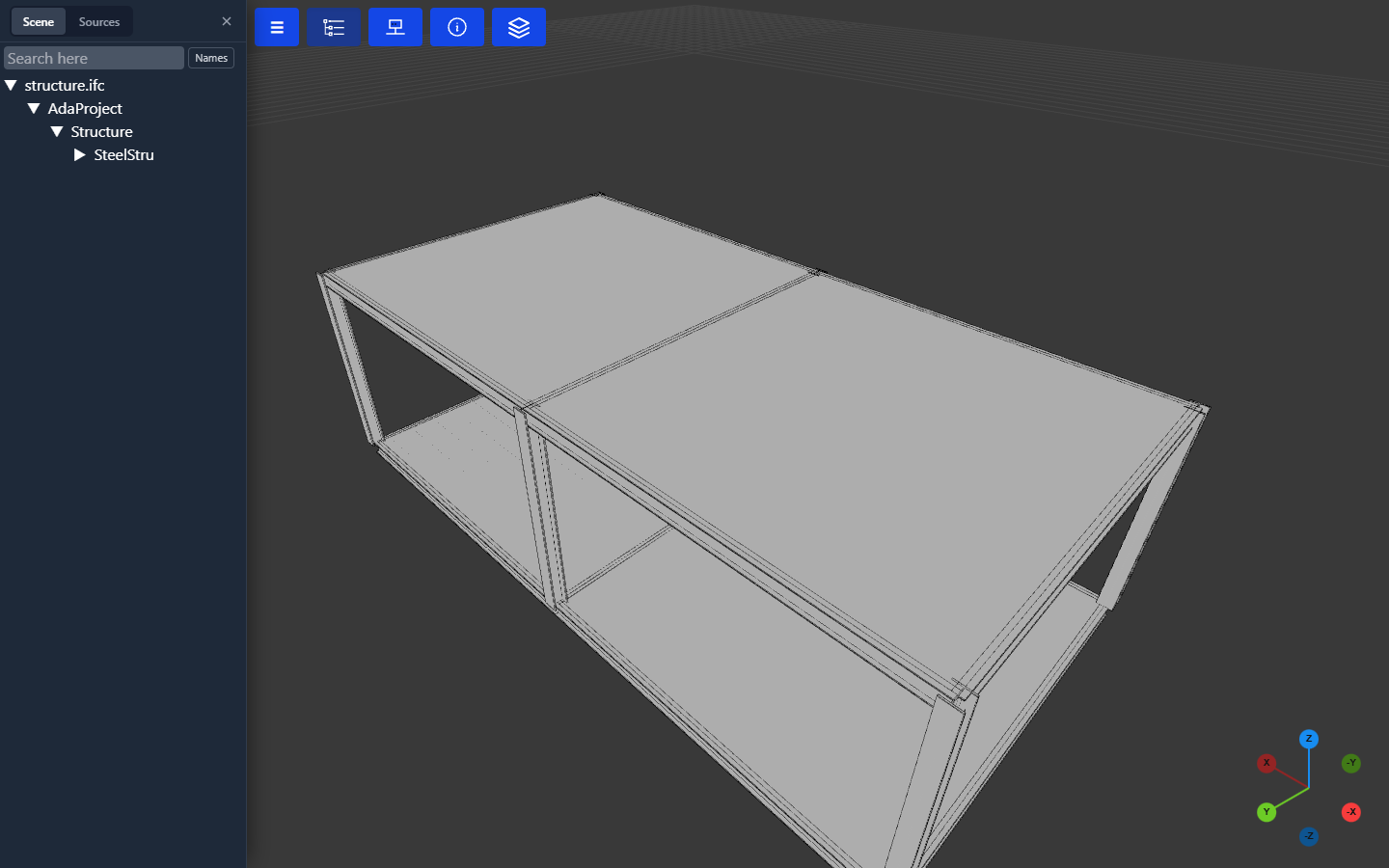

Open a model¶
A model in your storage opens in the 3D view together with its object tree. Here it is an IFC file of the topology engine's demo structure: columns, girders, stiffeners and decks, organised the way the model's parts are.

The view is in perspective. Orthographic view, in the Desktop UI's View → Camera menu and the classic UI's Settings → Scene config, draws it with parallel edges instead: the model is as tall at the orbit target as it was, zoom and the named views work as before, and labels keep their size on screen. A fit (Fit all, Fit selection, a named view) frames the model by its outline as seen from the camera, so it fills the view with a small margin. The choice is remembered in this browser, and applies on every viewport, the three.js-free one included.
Ground grid, in View → Display and Settings → Scene config, shows or hides the grid on the ground plane, also remembered in this browser. Section planes do not cut the grid, so turn it off for a clean plan cut. A UI shell may also put both toggles on its own toolbar.
A load that replaces the model on screen keeps the camera where you had it: a compile showing its result again, for one. The camera goes back to its starting view only when the scene is left empty.

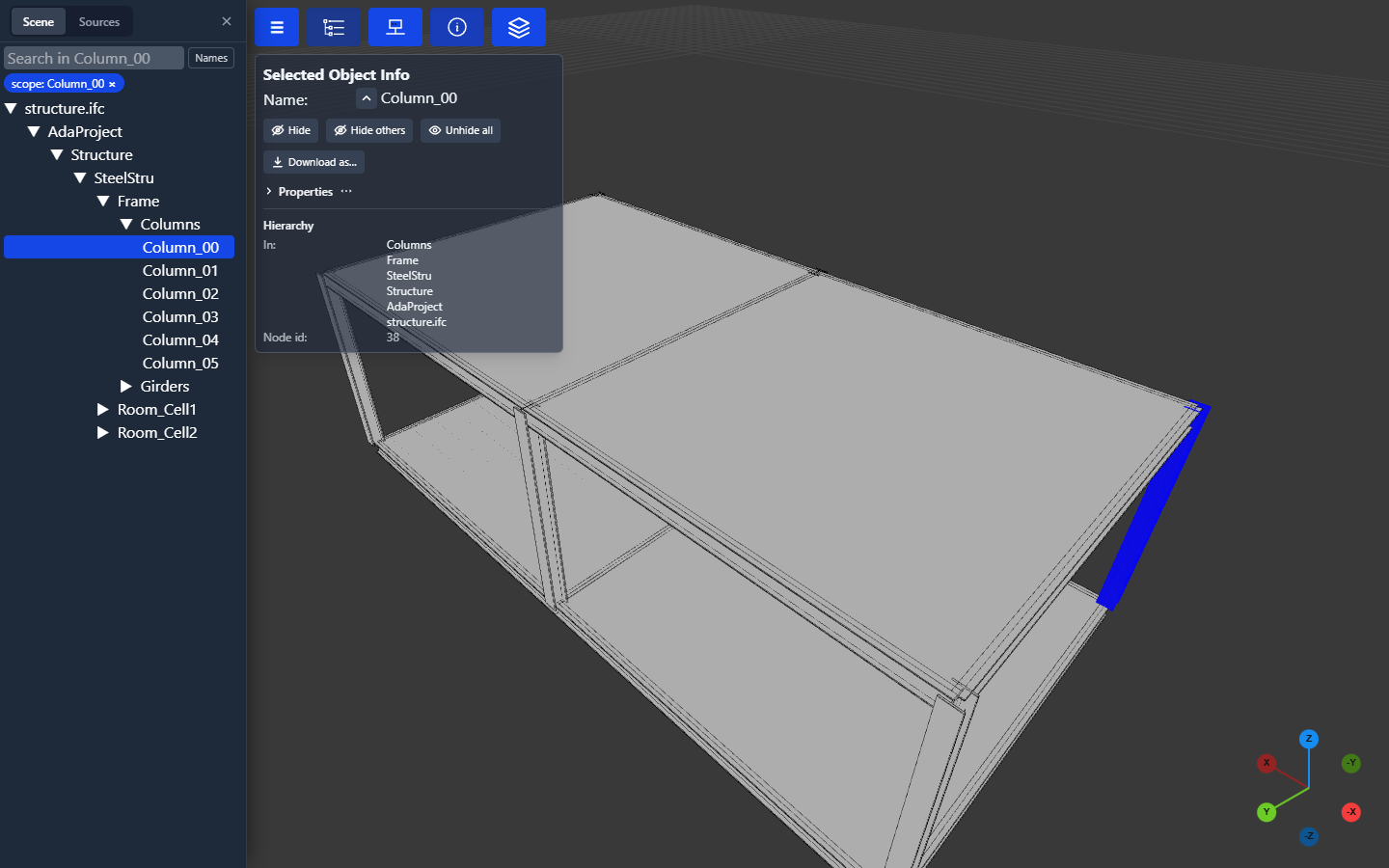

Select and inspect¶
Click a member in the tree or in the 3D view to select it. Selected Object Info shows its name and where it sits in the hierarchy. Properties reads its attributes from the source file on demand, so the model you load stays lean. From the panel you can hide the member or everything else, and download the selection as its own file.

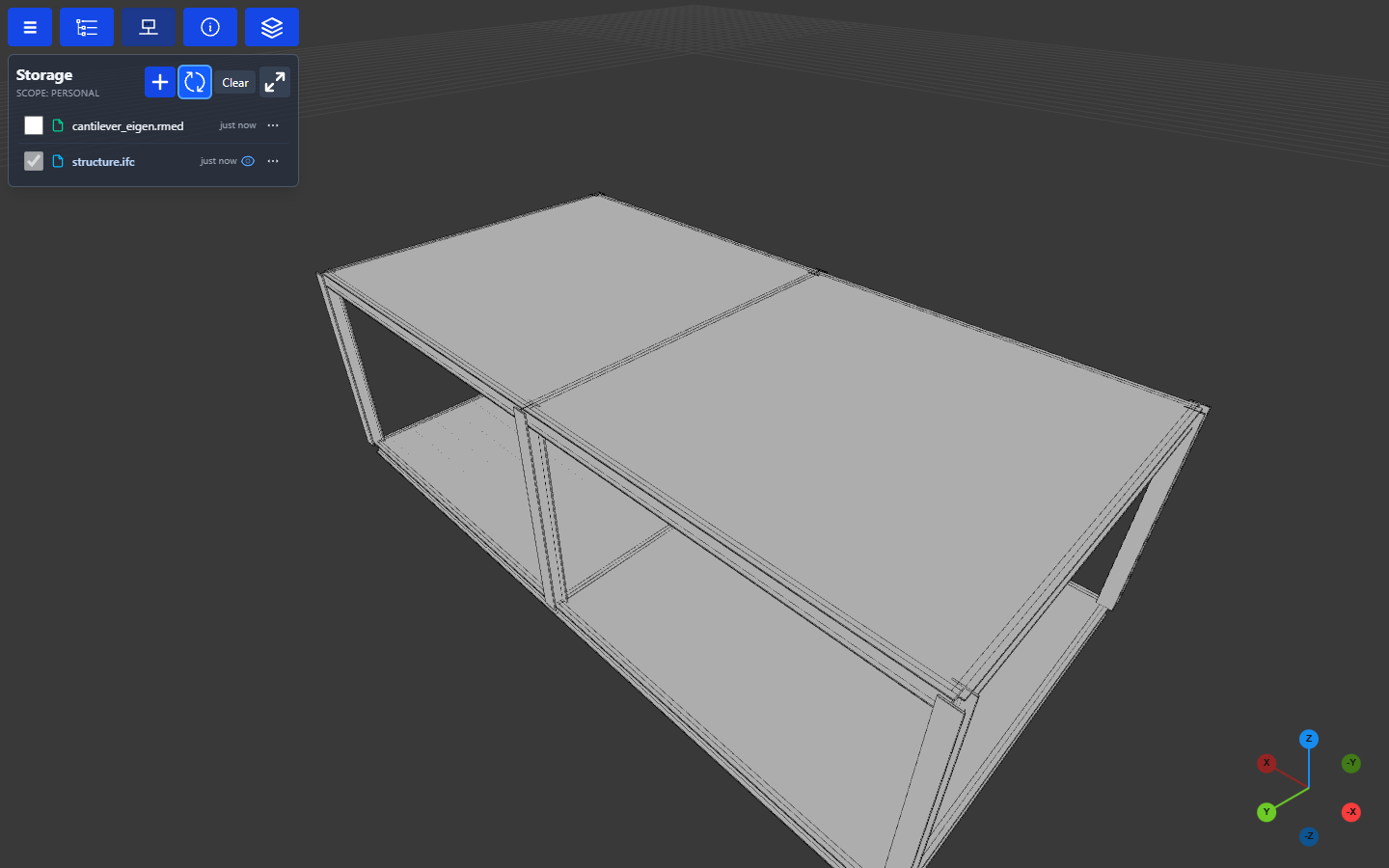

Your files¶
Storage lists the files in the current scope: your personal one, a project, or the shared scope. Tick a file to load it, and the eye icon marks what is in the scene. A source such as an IFC, STEP or Genie XML file is converted to a viewable model the first time you open it. + uploads files (or drop them on the panel), creates folders, and starts a new procedural model, from scratch, from a template or from Excel. The ⋯ on each row holds that file's own actions.

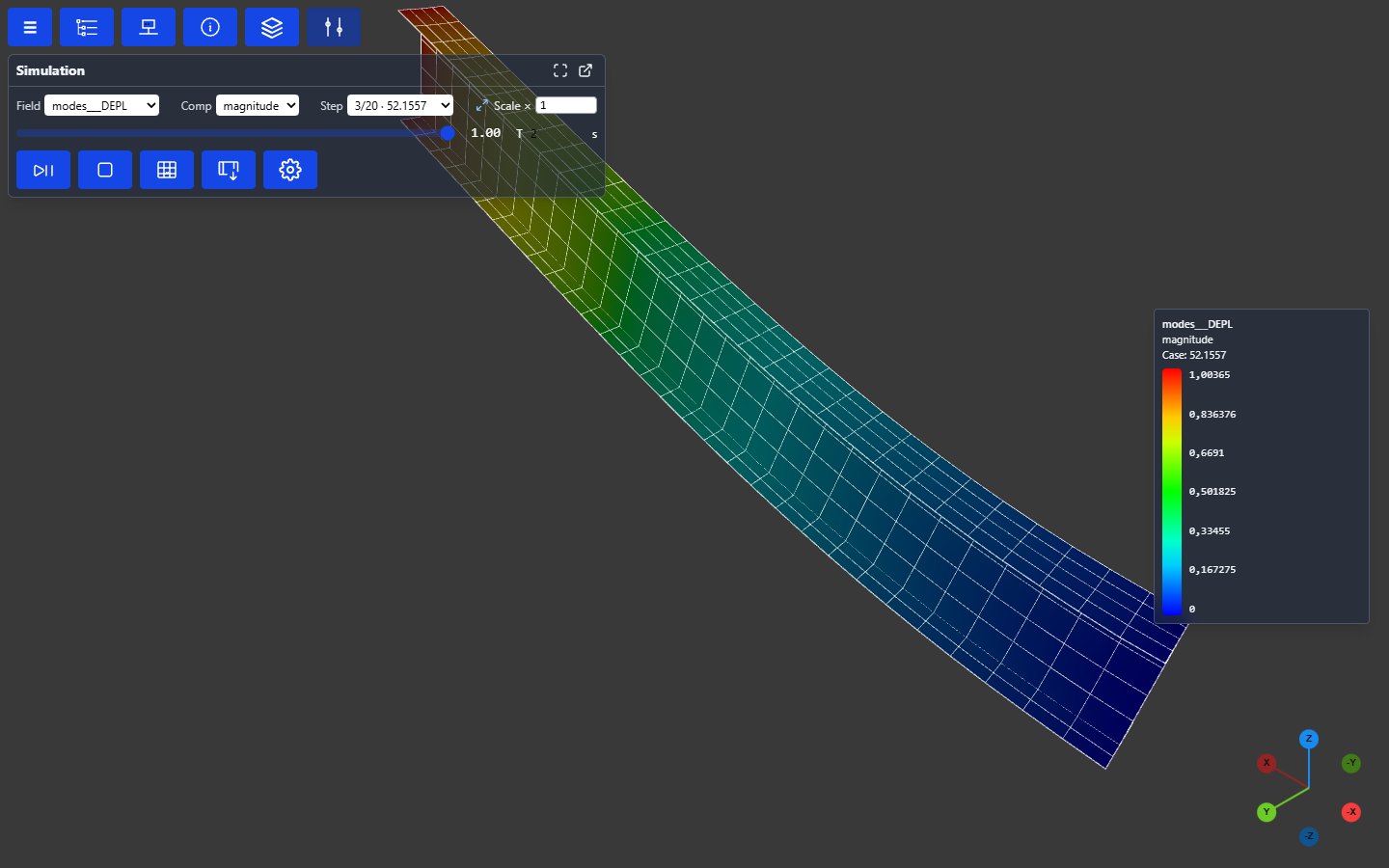

FE results¶
Result files open in the streaming FE viewer: a Code_Aster .rmed here, and Sesam
.SIN/.SIF, OpenCourant .radanim and FE meshes the same way. Pick the field, the
component and the step (for an eigenvalue analysis, the mode and its frequency), scale
the deformation, or let the mode oscillate. A time history, such as an
OpenCourant explicit run, opens on its last frame, and the
step slider becomes a timeline that Play steps through at true time scale. Either kind can
be exported as an MP4 or GIF animation. Each step is fetched on its own, so a result with
hundreds of steps opens as fast as one with a single step.
FEA → Viewer bake explains how.

Sets and properties¶
The result's named sets and model properties appear in the Scene tree after the loaded models, in every user interface. Sets lists the element sets and the node sets with their member counts. Properties lists each model property the bake carries, such as plate thickness, material and beam section, with every value and how many elements have it. Which element has which value is read from the result the first time the tree, or a picked element, needs it. Node sets are listed for information only, because nodes carry no faces to isolate.
Select one or more element sets or property values to isolate them, together. The isolated elements keep their result colours and their deformation, the colour legend measures only what is drawn, and the rest of the model is hidden or shown as its element edges (Show the rest as wireframe). The rest cannot be shown that way when the result has no element edges. The row menu (right-click) adds rows to the isolation, removes them, clears it, toggles the wireframe, and hides or shows a set's elements without isolating it (beams drawn as lines are reached only by an isolation). Every change is one step in the undo history (Ctrl+Z).
The Selected Object panel lists a picked element's property values and the sets it is in, each with an Isolate button. The same actions are commands in the palette (Ctrl+K), in the Desktop UI's View → FEA sets menu, and work from a panel opened in a window of its own: Isolate FEA sets… (by part of a set's name), Isolate the picked element's FEA sets, Clear FEA isolation and Show the rest as wireframe.

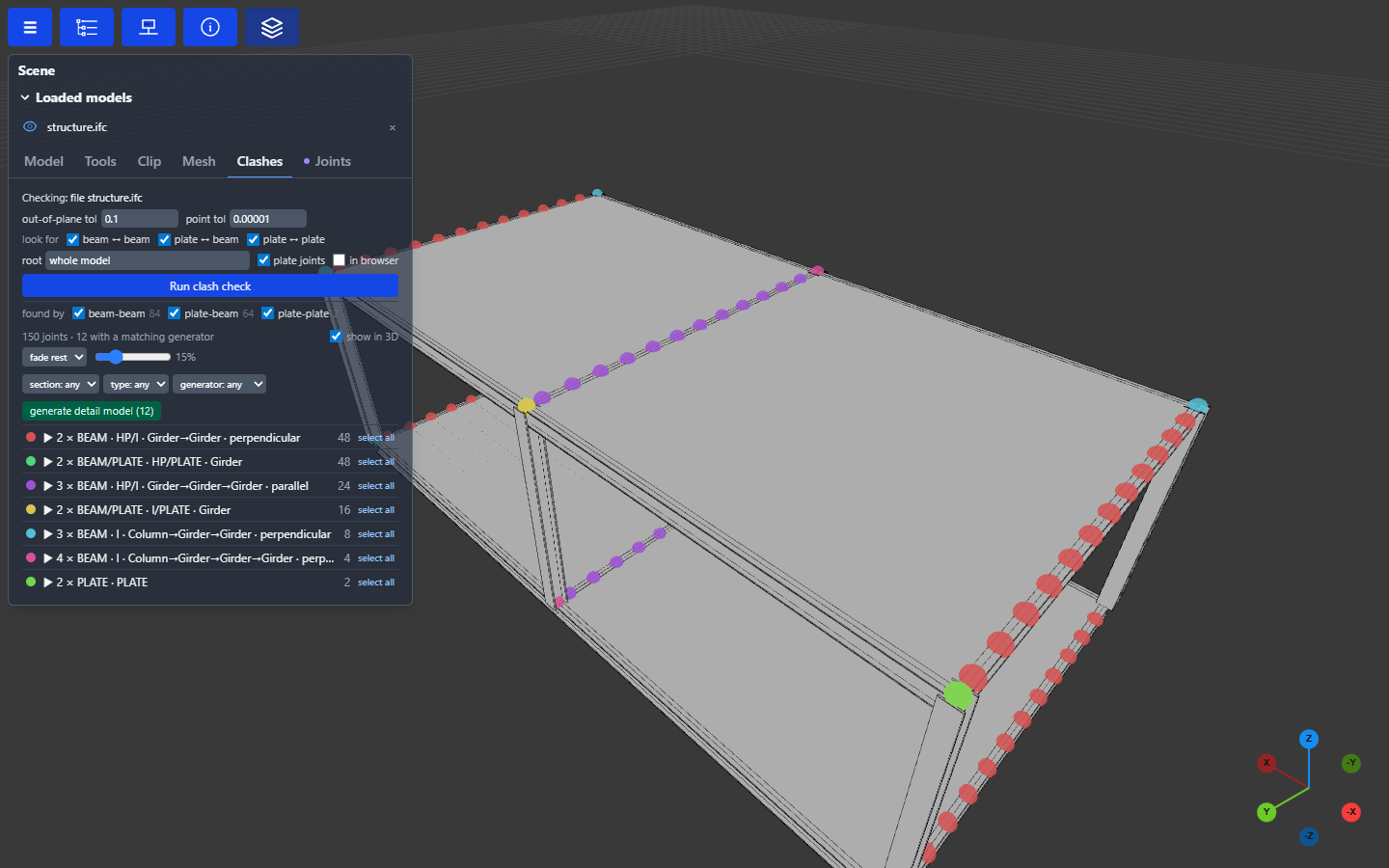

Clash and joint check¶
Connections → Clashes → Run clash check finds every place members meet. By default it runs the Convex contact engine: adacpp's compiled clash module, in the browser (WebAssembly), measures the solids the viewer shows and reports the members that touch or overlap, each with its contact normal, penetration depth and contact patch. The run is saved beside the model. Where this viewer's clash module does not load and no worker offers convex contact, or the target cannot be measured (a node delivered as a provider's mesh), the run falls back to the built-in Member connectivity check and the panel says so.
Member connectivity reads the member model instead of the solids: beam axes that meet at a shared node, beams whose mid-span lies in a plate's padded bounding box, and plates meeting edge-on. It finds which members are meant to connect, not where steel overlaps. Pick it from the checker list when that is the question; the choice is kept for the session.
Either way the joints are grouped by type (member kinds, section families, column or girder, the angle between them) and marked in 3D. Filter the groups, isolate one, and see which connection rules apply. Here, 12 joints match the built-in girder-gusset rule, and generate detail model builds those details.

Navigate with a 3D mouse¶
A 3Dconnexion SpaceMouse (or an older SpaceNavigator, SpacePilot or SpaceExplorer) can fly the 3D view alongside the mouse. The viewer reads the device in the browser, with no driver needed, in one of two ways. The status line in Options → 3D mouse says which is in use:
- Gamepad API (no prompt). Chrome and Edge list a SpaceMouse as a joystick-class gamepad, and the viewer reads its six axes from that. Nothing is asked of you and no permission is stored. The browser only shows a gamepad to a page once it has been moved there, so push the cap once after opening the page. The first push may zoom a little before the viewer sees the device, if the vendor's driver is running (it can also turn the cap into mouse-wheel zoom; while the cap is moving the viewer ignores the wheel and reads the cap itself, and an ordinary wheel is untouched). If the status reads Device found, but no axes are exposed, the browser lists the device but gives the page nothing to read; use the next route. Firefox does not list these devices as gamepads and Safari is untested.
- WebHID. Reads the device directly (Chrome, Edge or Opera). The first time, click Connect SpaceMouse… and pick the device in the browser's chooser; the browser remembers the choice, so later visits reconnect on their own, and unplugging and replugging is picked up while the page is open. A device opened this way is used instead of the gamepad one.
In the desktop app the device is read natively and none of this is needed.
- Open Options → 3D mouse and tick Enable 3D mouse. It is off by default, and while it is off the viewer never asks the browser for the device. Until you choose, a device the browser already lists (a gamepad you have pushed, or a WebHID device granted before) turns it on by itself; switching it off in Options is remembered and stops that.
- Push the cap once, or click Connect SpaceMouse… for WebHID.
The model follows the cap: push it sideways or lift it to pan, pull it toward you to zoom in, twist or tilt it to turn the model about the orbit target. The view stays level, so a sideways roll does nothing. The two side buttons fit the whole model and fit the selection (the same as Shift+A and Shift+F), and Shift+F is also how you move the point the view turns about onto the selection. In the same section you can set the speed, the dead zone around rest, invert any axis, keep only the strongest axis, lock rotation or panning, and remap the buttons.
On Windows, the vendor's 3DxWare driver may hold the device, which WebHID cannot open. The gamepad route is not affected by that, so push the cap once and it keeps working. To use WebHID anyway, quit the driver (the 3DxService process) and connect again.
The gamepad route assumes the browser lists the axes in the device's own order and signs. This has not been checked on every model: if the view turns the wrong way, use the Invert switches in the same section.
Marking menu and tool rail¶
The marking menu is a wheel of commands at the pointer. Hold the right mouse button still over the 3D view for a moment and it opens: move towards a command and let go to run it. Fit all is up, hiding is to the left with Show all above it, selection is to the right, and the camera views are below, in a second wheel that opens as you move past Views. A list under the wheel holds Undo and Redo, and, while an FE result is loaded, the set isolation. Let go without moving and the menu stays open, so you can click a command, or choose one with the arrow keys and Enter. Shift+E opens it from the keyboard, and Escape closes it. A command that cannot run now stays in its place, greyed, and its tooltip says why. A quick right-click still opens the object's menu, and a right-drag still pans. The menu is on in the Desktop UI. In the classic UI, turn it on in Options → Theme → Marking menu. Either UI can turn it off there or in the Desktop UI's View → Display menu.
The Desktop UI also has a tool rail down its left edge: one button per command, with its shortcut in the tooltip. A toggle, such as Geometry edges, shows as pressed while it is on. Right-click a tool to remove it. The button at the foot of the rail (also Window → Customise tool rail…) adds any command, reorders the tools, adds separators and resets the rail to the default. Your rail is saved with your layout.
What else is in it¶
- Assets and sources: project trees that providers publish into a scope, with a Sources tab next to the scene tree, attributes per object, and geometry roll-ups.
- Groups: named selections that are saved with the scope and shared with everyone who can read it.
- Procedural models: cell-model documents compiled into structures, equipment and routed systems by the topology engine, with equipment and system catalogs. While the cell builder's resize gizmo (S) is on, the selected cell shows its three dimensions on the edges facing you, updated as you drag.
- Plugins: UI shells, panels and URL handlers on the frontend side, and plugin backends, artefact contributors and job kinds on the worker side.
- Administration: users, projects, storage, workers, scheduled audits of conversions, and the issue bot that turns failures into tracked issues.
Viewer platform and Frontend describe how it is built.
Run it yourself¶
Run the API from any environment that has ada-py, and serve the built frontend from it:
pixi run -e frontend wbuild-serve # builds src/frontend/dist
ADA_VIEWER_STATIC_PATH=src/frontend/dist \
ADA_VIEWER_LOCAL_PATH=./viewer-data \
pixi run -e viewer-api viewer-api # http://localhost:8080
Without a job queue (ADA_VIEWER_NATS_URL unset) everything runs in the environment the API
was started from: file conversions (IFC, STEP, SAT, FEM, ... to GLB and the other targets), FE
result bakes, utilities and component builds, the clash check, asset builds and exports. The
heavy jobs (conversions and bakes) each run in a child process of the same interpreter, through
the same pipeline a worker runs, so a crash or an out-of-memory in a CAD reader fails that job
and not the viewer. Plugins on ADA_WORKER_PRELOAD or the ada.plugins entry points are loaded
there too, so a tool that starts the viewer from its own environment
(python -m ada.comms.rest) offers exactly the conversions and job kinds that environment can
run.
Every local job, of every kind, waits its turn in one queue: first in, first out, with a cap on
how many run at once, and a CPU budget the running jobs share (each job process gets its share as
its thread count, and on Linux its own CPUs). A waiting job shows queued (n ahead). Cancelling it
removes it before it starts. Jobs that take a moment (reading a result deck's inventory,
detailing a few joints, a publish) get one extra lane so they never wait behind conversions. Set
the limits under Settings > Local jobs, at launch (ada serve api --max-jobs 2 --cpu-budget 50%,
the same flags on ada desktop), or with ADA_LOCAL_JOB_PROCESSES / ADA_LOCAL_JOB_CPU_BUDGET.
The budget is a core count (4), a fraction (0.5) or a percentage (50%). Defaults: half the
cores, at most 4 jobs, and every core. The settings are kept in the server's storage (or its
database). A launch value wins for that run and is saved. A change applies to the next job that
starts. What still needs a queue: admin audit sweeps (they measure worker pools), and job
kinds that write back to a database or chain onto another pool.
The development stack, with NATS, the API and one worker in Docker, is for working on the queue and worker path itself:
As a desktop app¶
ada desktop runs the same local viewer and opens it in a native window instead of a
browser tab (Windows first). It needs the ada-desktop window shell next to ada-py:
conda install -c conda-forge ada-py-desktop # once published; until then build it from a checkout:
pixi run -e desktop-shell build-desktop # then ada desktop --binary src/desktop/target/release/ada-desktop.exe
ada desktop # optionally: ada desktop model.ifc
Pop-outs and dashboard windows become native windows that remember their size and position,
and a 3D mouse works without the browser's device chooser. The viewer listens on a fixed
per-user port so layouts and settings saved in the page carry over between launches; it
stops when the last window closes. See the CLI reference for the
options and src/desktop/README.md for how the shell is built and what it lets the page do.
Regenerating the screenshots¶
pixi run -e frontend wbuild-serve # once: the SPA the server serves
pixi run -e tests ui-stories # every story, into docs/screenshots/ada-studio/
pixi run -e tests ui-stories --list
pixi run -e tests ui-stories --story fea-modes # just one; repeatable
pixi run -e tests ui-stories --theme light # <story>-light.png
The script starts a throwaway Ada Studio of its own: local storage under .pixi/ui-stories/,
wiped on every run, with no login, no database and no job queue. It seeds a model and an FE
result, converting and baking them in-process with the same code a worker runs. A story is a
function decorated with @story("name", "summary"): it opens one screen in the state a user
would see it, and waits for it to settle. Add a story, then embed
screenshots/ada-studio/<name>.png where this page describes it.
